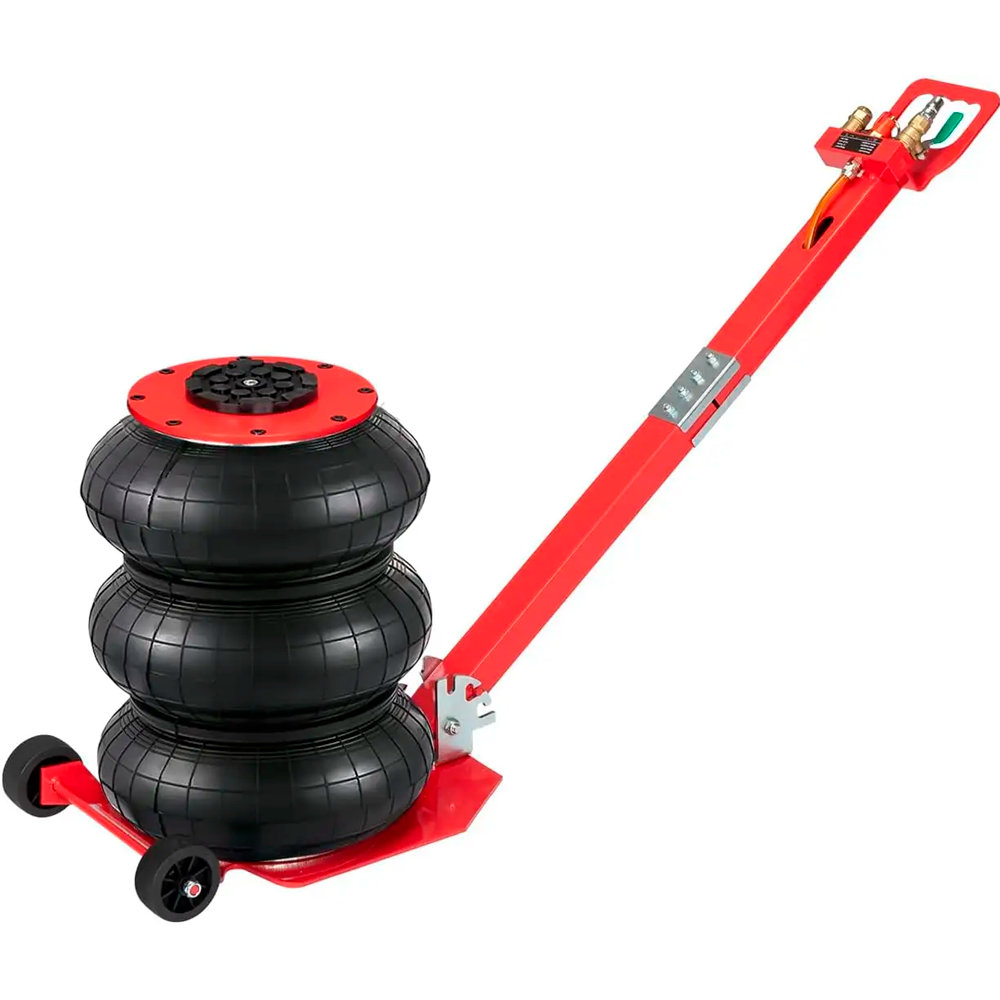

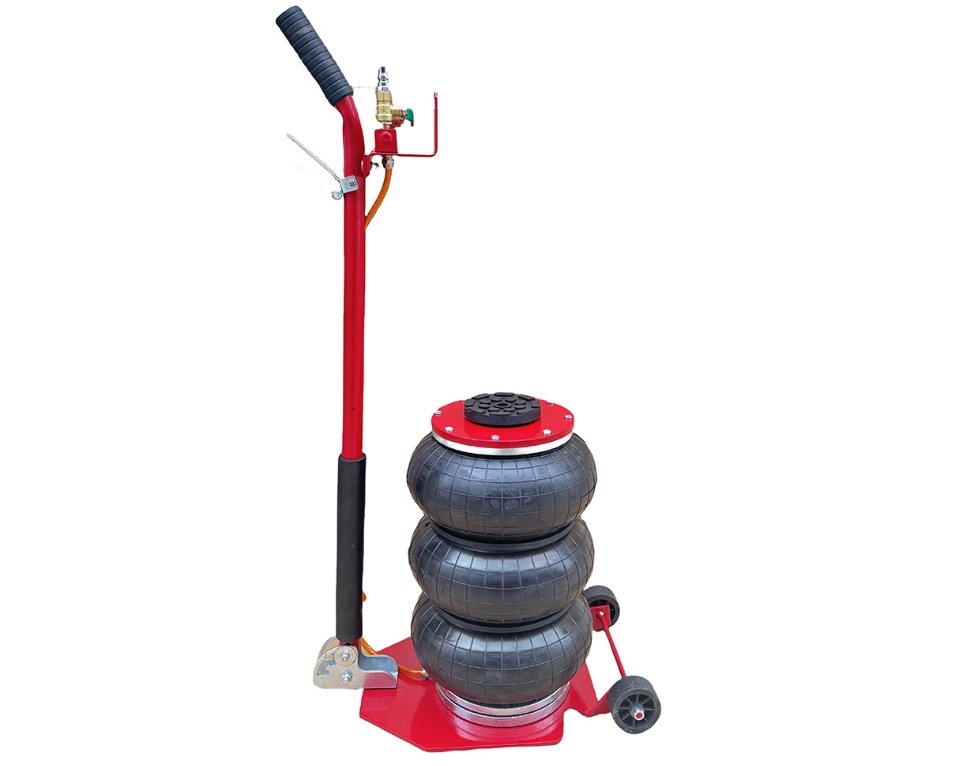

Air Jack 3 ton/6600 lbs with Folding Handle

The air jack is a kind of fast lifting jack that uses compressed air to elevate heavy objects, also known as pneumatic jack or air bag jack. Unlike traditional mechanical jacks or hydraulic jacks, pneumatic jacks use an inflatable bag made of a durable material such as reinforced rubber, which expands when inflated to provide a stable lift.

Product Specifications

Air jack advantages

Adjustable Handle: Easy to change the angle of the handle in a breeze

Fast lifting: Lifting car in 5 seconds

Heavy duty construction for stability and durability: Made of high strength steel. Rugged construction provides excellent stability and ensures safe lifting.

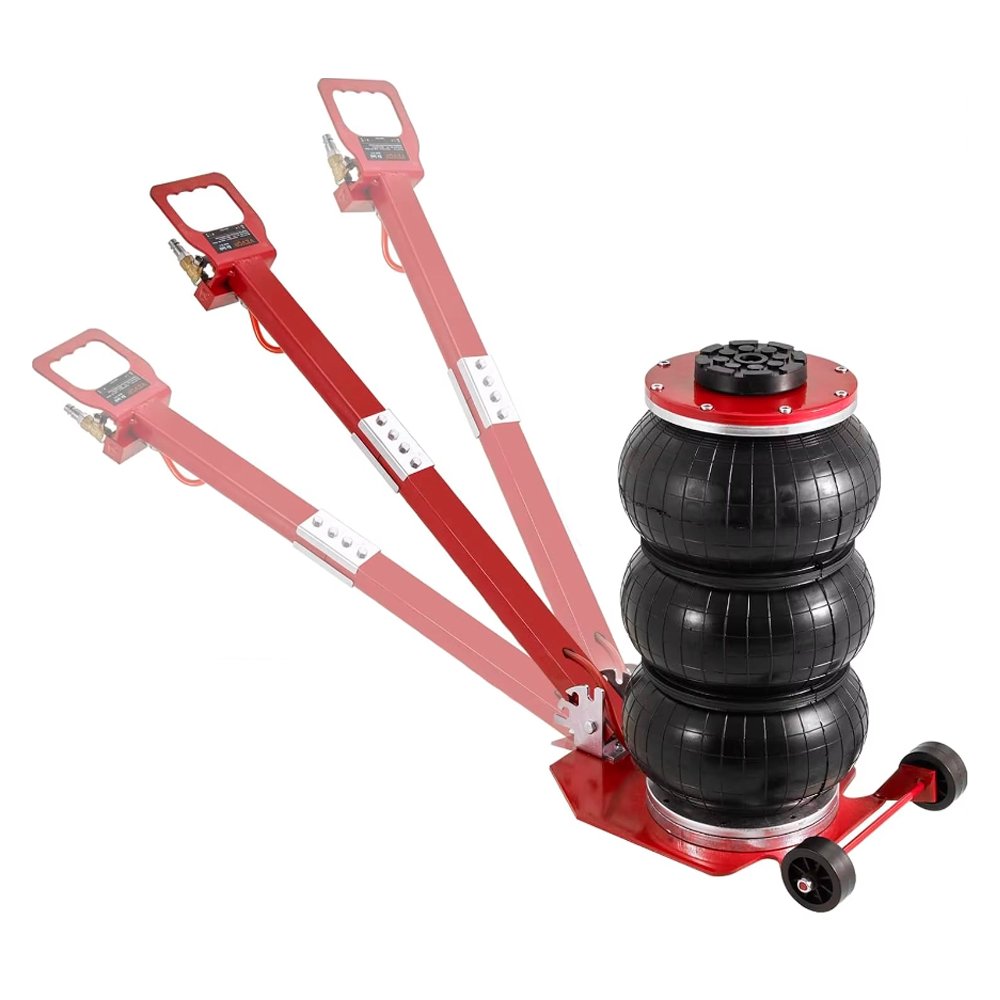

Portable design with folding handle: The pneumatic jack comes with a convenient folding handle that can be fixed in three different positions for easy use in tight spaces. The portable design allows you to take it with you wherever you go.

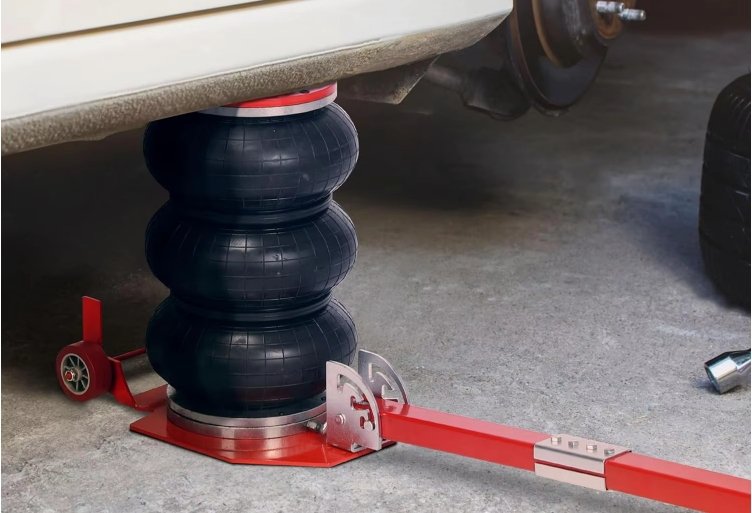

Wide applications: Quick jack car lifts are suitable for situations where a single wheel needs to be lifted on loose terrain or dirt roads, for family cars, vans, SUVs and off-road vehicles.

How to use an air jack to lifting car fast?

(1) Keep the air outlet valve closed. Connect an air compressor, insert the air pipe into the air inlet valve of the control switch at the rear of the pull rod, and inject compressed air.
(2) Open the air inlet valve, and close the air inlet valve after the airbag rises to an appropriate height, then you can use it.
(3) Open the air outlet valve to exhaust the air and the height will drop.

Precautions
(1) It should be used on a relatively flat and solid ground.
(2) Use within the normal pressure range
(3) Each time you use the jack, keep the part in contact with the vehicle body within 10-20 mm outside the middle of the top.
(4) When the airbag rises to a higher height, please stop supplying air.
